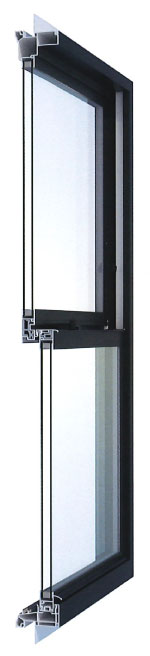

LC-PG50 | 1600 SERIES
FEATURES
▪ 3-1/4” Depth Vinyl Frame
▪ Cardinal LoĒ³-366® Laminated Impact Glass
▪ Duralite® Warm-Edge Spacers for Better Thermal Performance
▪ Impact Picture and Impact Single Hung Windows Feature Same Profile
▪ Integral Nail Fin
▪ Wet-Glazed for Weather-Tight, Durable Performance
▪ Sloped Pocket Sill for Effective Drainage and Sash Stability
▪ Two Lift Rails Located on the Upper and Lower Part of the Sash
▪ All Windows Feature Two All-Metal Locks and Keepers
▪ 1/2” x 3/4” J-Channel Pocket
▪ Block & Tackle Balance System
▪ Sash: Fully Reinforced with Aluminum
▪ Standard Colors: White | Adobe | Tan
▪ Upgrade Capped Colors: Bronze/White | Black/White | Black/Black
▪ Limited 20-Year Glass Warranty
▪ Limited Lifetime Frame Warranty
SIZE INFORMATION
▪ 2850 Windows Comply with First Floor Egress Openings
▪ 3050 Windows Comply with Second Floor Egress Openings
APPROVALS & RATINGS
STC RATING: 36
OITC RATING: 30
Tested to ASTM E1886 and E1996 Protocols
FLORIDA APPROVAL NUMBERS:
Single Hung: FL46607
Picture: FL46606 Mulling: FL46574
MINIMUM / MAXIMUM FRAME SIZES
Single Hung Windows
Minimum Width: 17.5″
Minimum Height: 35.5″
Maximum Width: 35.5″
Maximum Width: 71.5″
*Maximum width of 35.5” when height is over 71.5” on single hung.
Picture Windows
Minimum Leg Length: 11.5″
Maximum Leg Length: 71.5″
Minimum Sq. Ft.: 2
Maximum Sq. Ft.: 30
| GLASS TYPE | U-VALUE | SHGC | VLT | |
|---|---|---|---|---|
| NO GRIDS | LoE³-366 | .33 | .33 | .51 |
| LoE³-366 Argon | .30 | .30 | .51 | |
| LoE³-366 Argon + i89 | .26 | .21 | .49 | |
| LoE³-366 Argon + i89 F | .25 | .21 | .49 | |
| GRIDS | LoE³-366 | .33 | .20 | .46 |
| LoE³-366 Argon | .30 | .20 | .46 | |
| LoE³-366 Argon + i89 | .26 | .20 | .46 | |
| LoE³-366 Argon + i89 F | .25 | .20 | .46 |
